VPN Hide

Hide an active Android VPN connection from selected apps.

Русская версия

Why vpnhide over alternatives?

Existing modules like NoVPNDetect and NoVPNDetect Enhanced only cover Java API detection and hook inside the target app's process via Xposed. This has two critical problems:

1. Invisible to anti-tamper — any app with memory injection checks detects the Xposed hooks and refuses to work. The NoVPNDetect Enhanced author explicitly states: "The module will not work if the target app has LSPosed protection or memory injection checks. For example, MirPay, T-Bank."
2. No native coverage — apps using C/C++ code, cross-platform frameworks (Flutter, React Native), or direct syscalls can detect VPN through ioctl, getifaddrs, netlink sockets, and /proc/net/*. These vectors are completely missed by Java-only hooks.

vpnhide solves both problems with a layered architecture:

Layer 1 — Java API (lsposed module): hooks system_server, not the target app. NetworkCapabilities, NetworkInfo, and LinkProperties are filtered at the Binder level before data reaches the app's process. The app receives clean data over IPC — no injection into its process, nothing for anti-tamper to detect. The same module also hides selected apps from observer apps at the PackageManager level (the Apps role).

Layer 2 — Native (kmod, KPM, or Zygisk): covers native detection paths. Exactly one native backend should be active:

• kmod (recommended for supported GKI kernels) — kernel-level kretprobe hooks. Filters ioctl (SIOCGIFFLAGS, SIOCGIFNAME, SIOCGIFCONF), getifaddrs/netlink dumps (RTM_GETLINK, RTM_GETADDR), routes, and /proc/net/route reads before the syscall returns to userspace. Zero footprint in the target process: no library injection, nothing to detect.
• KPM (beta) — a KernelPatch Module with the same purpose as kmod, but without a GKI-variant-specific .ko. Useful for old/non-GKI 4.14 / 4.19 / 5.4 kernels and cases where the .ko cannot load. Requires a KernelPatch runtime: APatch or KPatch-Next-Module.
• Zygisk — fallback when a kernel-level backend is not possible. It inline-hooks libc.so inside the target process, so banking and anti-fraud apps may detect it. For those apps, leave Native off and rely on the Java layer.

Layer 3 — Ports module (portshide): a separate Magisk module. It blocks selected apps from reaching 127.0.0.1 / ::1 (via iptables), so they can't detect a locally bound VPN / proxy daemon by its open port (the Ports role).

The target app's process is completely untouched when using LSPosed + a kernel-level Native backend (kmod or KPM) — no Xposed, no inline hooks, no modified memory regions. Because of that, vpnhide works with banking and government apps that actively detect and block Xposed-based modules.

What vpnhide hides

vpnhide hides three things from selected apps, all configured per app via the four J / N / A / P roles (Java, Native, Apps, Ports):

1. Interface hiding — the main goal. It removes VPN interfaces and routes from native APIs (ioctl, getifaddrs, /proc/net/*, NetworkInterface) and from Java APIs (NetworkCapabilities, NetworkInfo, LinkProperties). It is delivered by two roles together — Java (J) and Native (N) — toggled independently.

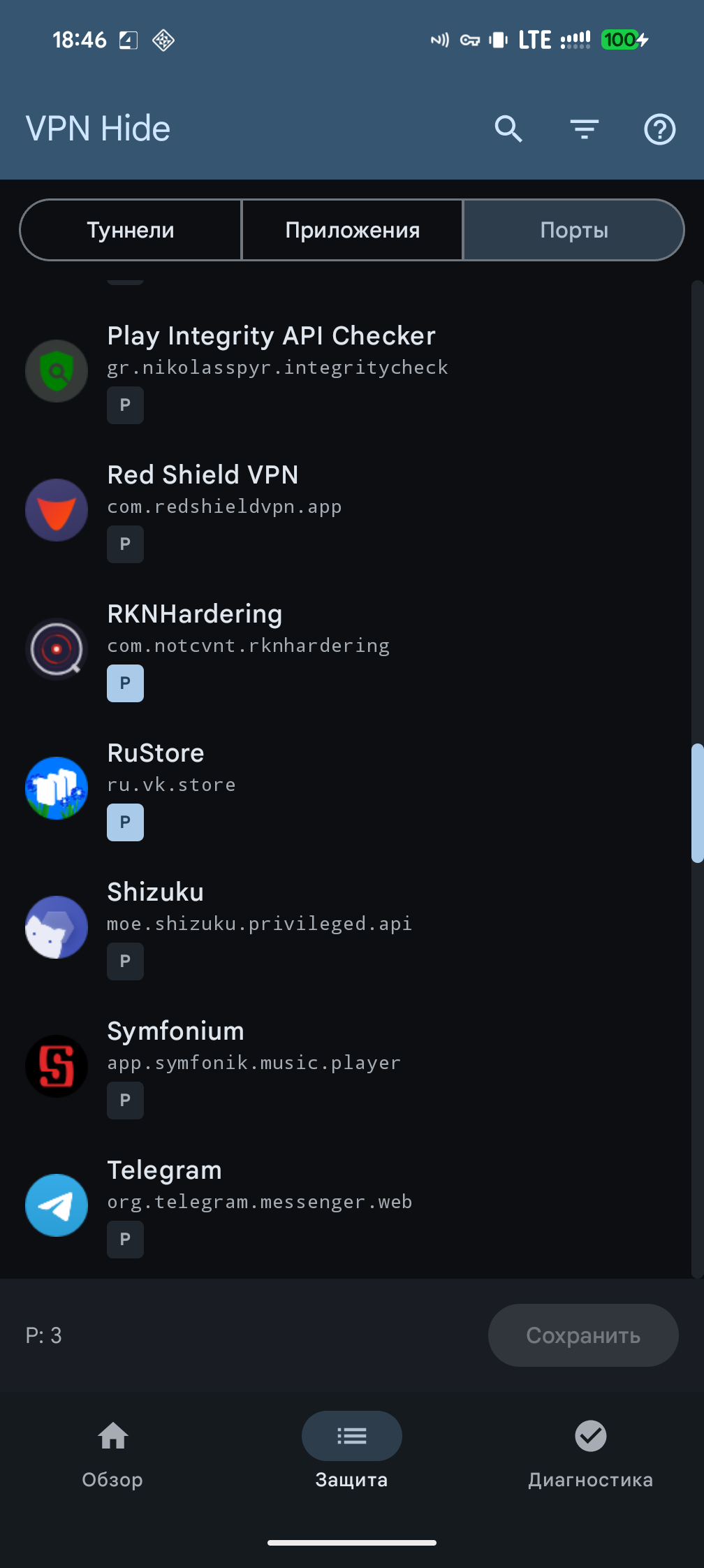

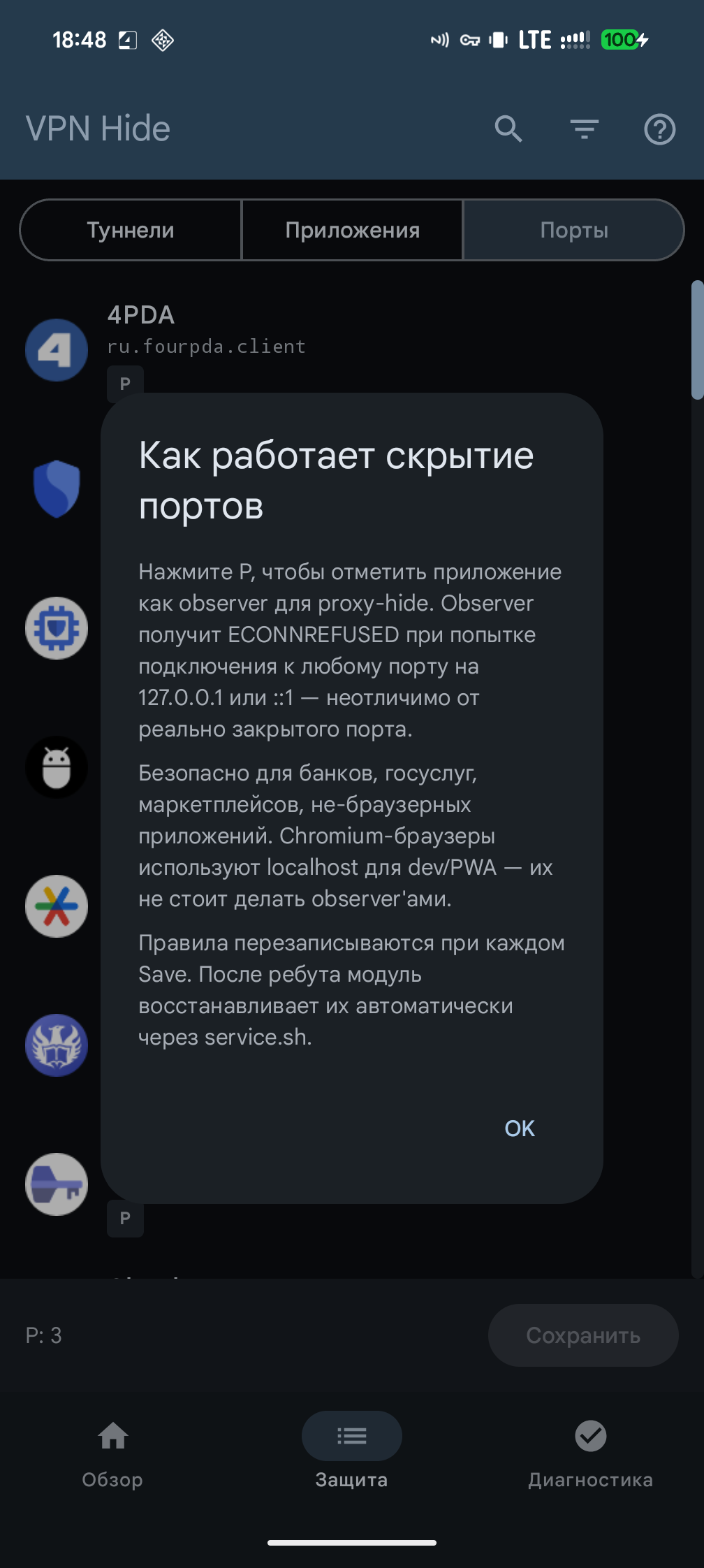

2. Port hiding — blocks localhost access for selected apps so they cannot detect Clash, sing-box, V2Ray, Happ, and similar tools by probing local ports (the Ports (P) role).

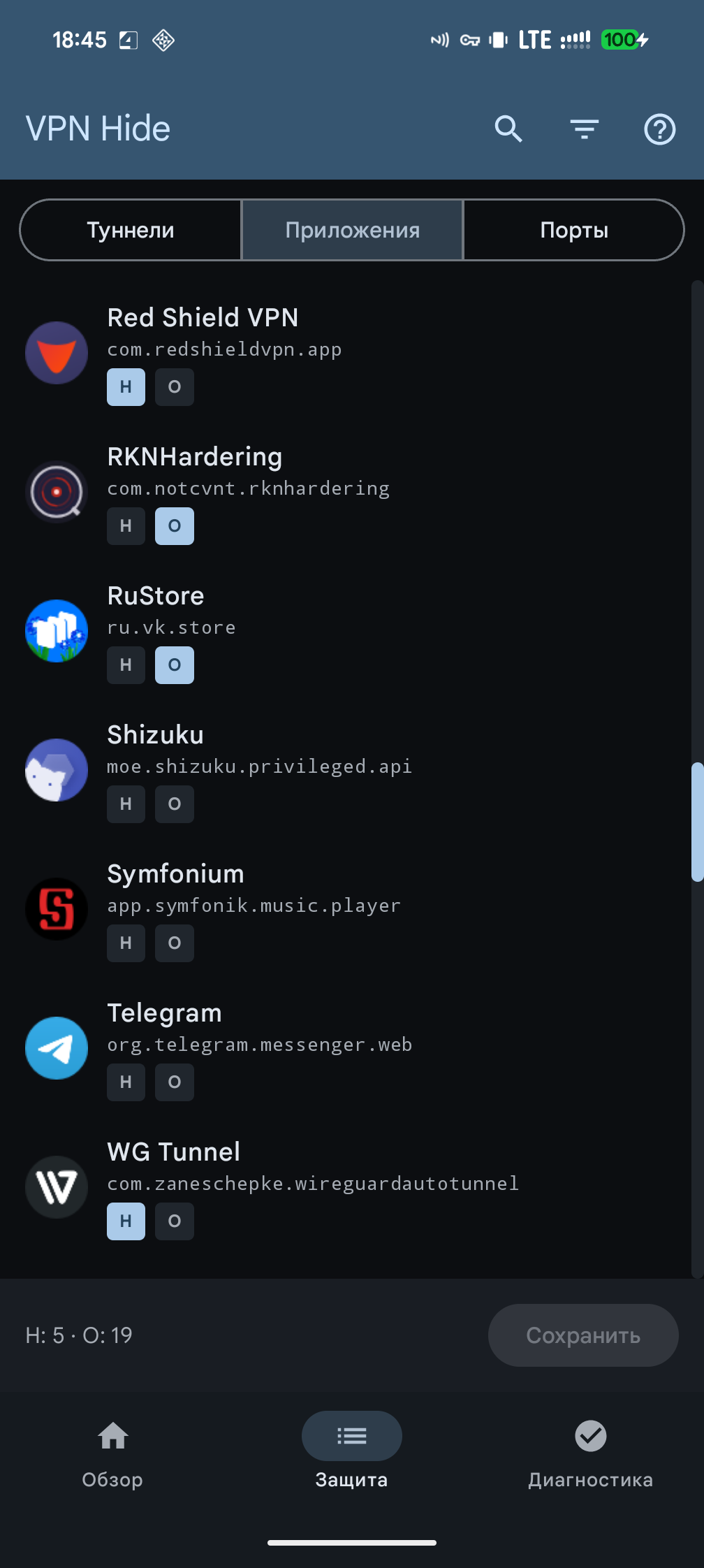

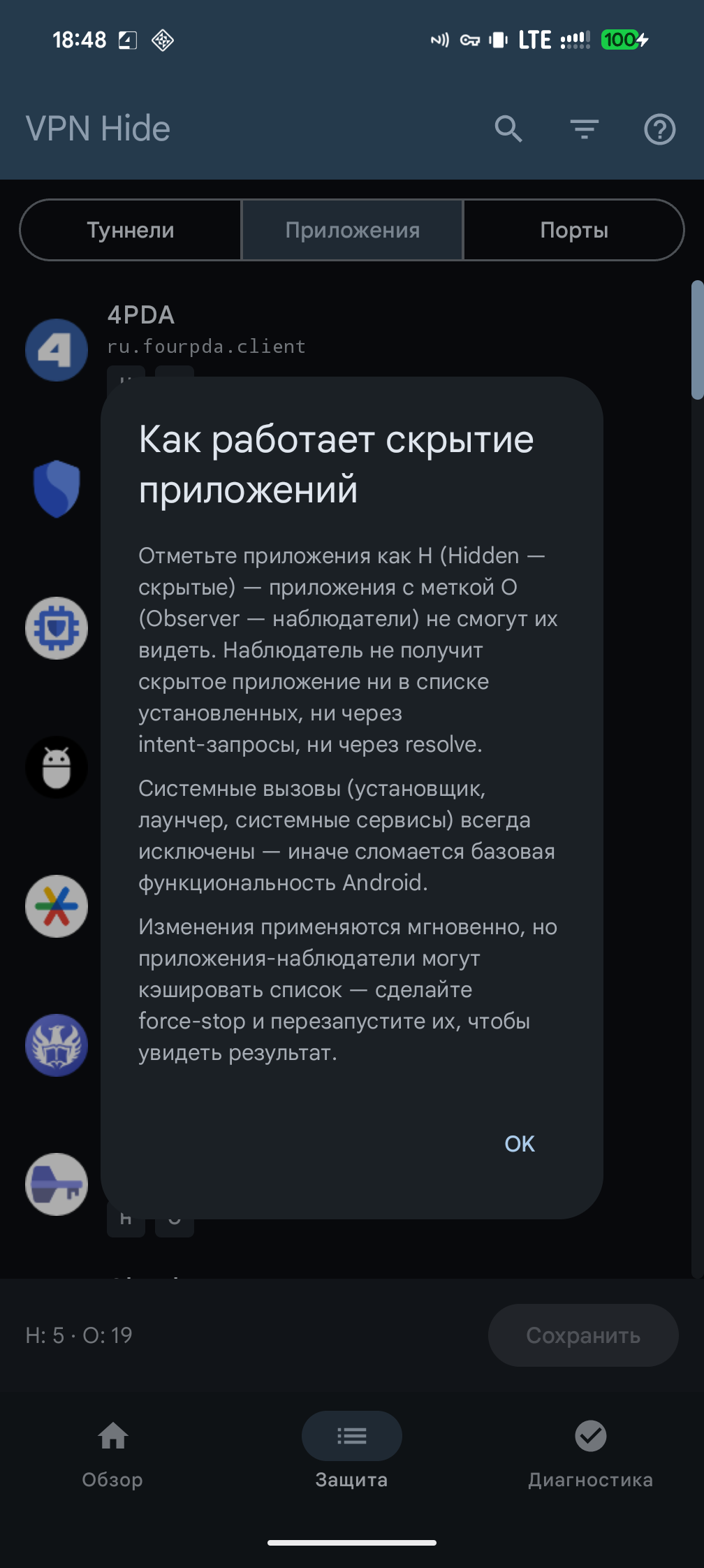

3. App hiding — hides selected installed apps from selected observer apps. Useful against package visibility checks, for example when an app tries to determine whether a VPN or proxy client is installed (the Apps (A) role).

Which modules do I need?

You always need the VPN Hide app (vpnhide.apk) + LSPosed/Vector for the Java layer + exactly one Native backend for native hiding. The app can also use the optional Ports module if you want localhost port blocking:

• kmod (stable default) — fully out-of-process, invisible to anti-tamper. Requires a supported GKI kernel: 5.10, 5.15, 6.1, 6.6, or 6.12.
• KPM (beta) — kernel-level backend for 4.14 / 4.19 / 5.4 and other cases where the .ko does not fit. Requires APatch or KPatch-Next-Module.
• Zygisk — fallback if kmod/KPM are unavailable or you do not want to install a KernelPatch runtime.
• portshide (optional) — install this if you want to block selected apps from probing localhost ports.

Do not install multiple Native backends at the same time. If more than one is installed, the app chooses the active one by priority: kmod, then KPM, then Zygisk; uninstall unused modules.

See Install for step-by-step instructions.

Install

Download the latest release from Releases.

Step 1 — VPN Hide app + LSPosed

1. Install vpnhide.apk as a regular app
2. In LSPosed manager, enable the VPN Hide module and add "System Framework" to its scope
3. Reboot the device (required — LSPosed hooks are injected into system_server at boot, so the module must be active before system_server starts)
4. Open the VPN Hide app and grant it root access (Magisk usually prompts automatically; on KernelSU/KernelSU-Next/APatch, grant permission in the manager)

Step 2 — Native module for interface hiding

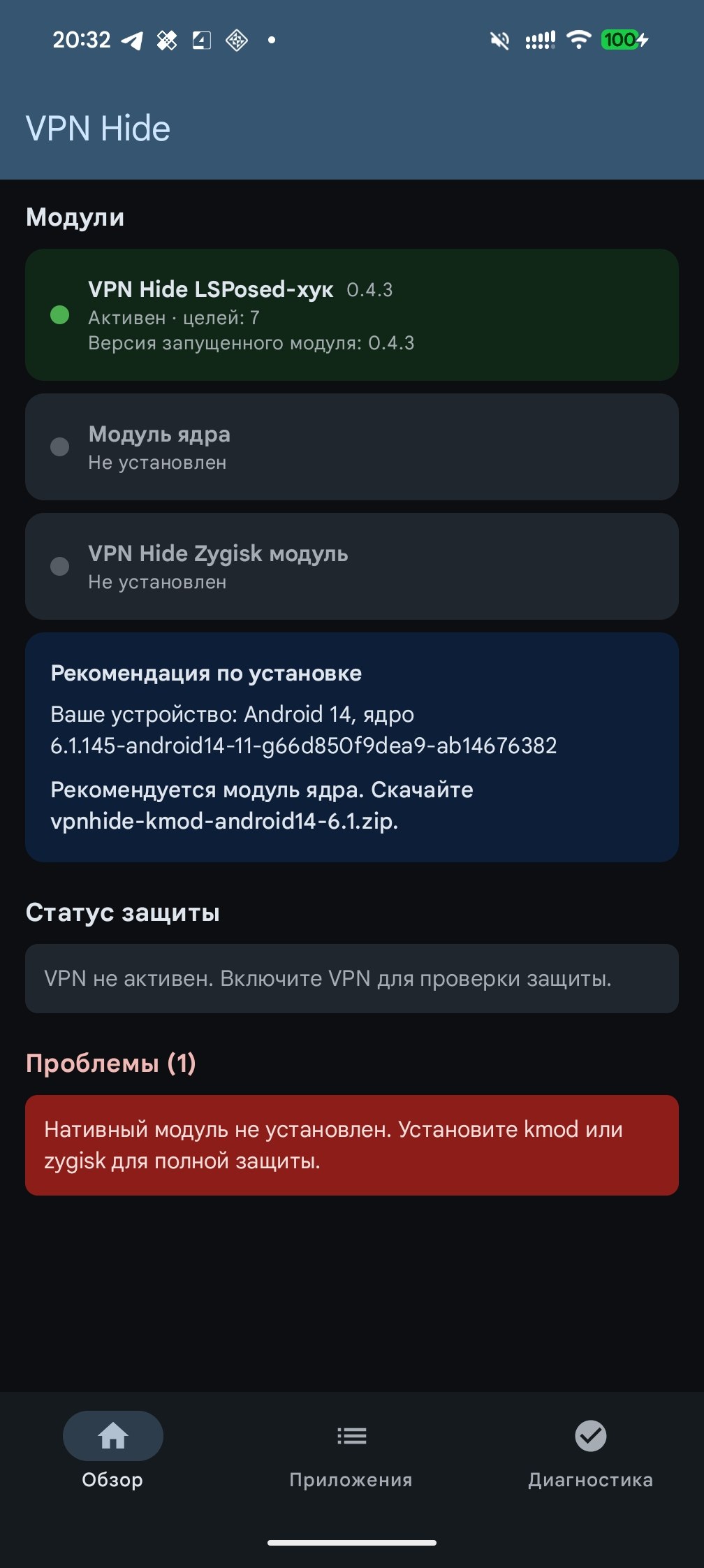

Open the VPN Hide app. The Dashboard tab will detect your device and kernel, and tell you which Native backend to install:

• For a supported GKI kernel, it recommends a specific kmod file, e.g. vpnhide-kmod-android14-6.1.zip.
• For old/non-GKI 4.14 / 4.19 / 5.4 kernels, it recommends vpnhide-kpm.zip (beta). If no KernelPatch runtime is detected yet, the app asks you to install KPatch-Next-Module first or use Zygisk as a fallback.
• For other kernels, it recommends vpnhide-zygisk.zip.

Install the recommended module:

• kmod: via KernelSU-Next / KernelSU / Magisk manager → Modules → Install from storage.
• KPM: install vpnhide-kpm.zip; under APatch/FolkPatch the app may ask you to save the SuperKey in Settings → Security for boot-time activation if the runtime does not expose a trusted KernelPatch su token. Under Magisk, KernelSU, and KernelSU-Next, install KPatch-Next-Module first if it is not already installed.
• Zygisk: via KernelSU-Next, KernelSU, or Magisk manager → Modules.

Reboot the device after installing the native module.

Step 3 — Optional: install the Ports module

If you want localhost port blocking, install vpnhide-ports.zip via KernelSU-Next or Magisk manager.

This module is independent from the Native backend and is only needed for the Ports role in the app.

Step 4 — Configure hiding

Open the VPN Hide app → Hiding tab.

Each app row has roles:

• Java — hide VPN through Android Java APIs at the LSPosed/system_server level.
• Native — the active Native backend: kmod, KPM, or Zygisk. VPN Hide stores one Native selection; only the active backend acts.
• Apps — the app becomes an observer that should receive a sanitized PackageManager view with selected VPN/proxy apps hidden.
• Ports — block this app from reaching localhost ports.

Settings can switch from short J / N / A / P chips to full role labels. For Java, Native, and Ports, the settings icon next to the label opens per-hook or port-range settings.

Tap Save after making changes.

Java and kernel-level Native backends (kmod/KPM) apply immediately. Zygisk hooks and Ports rules are picked up by a selected app after force-stop and reopen.

Note: some apps detect Zygisk hooks when Native is enabled for them. Leave Native off for those apps and rely on the Java layer, or use kmod/KPM instead.

Shell configuration (advanced)

The user-managed config lives in /data/system/vpnhide_config.json. Edit the JSON, then run the activator for the installed module:

su -c /data/adb/modules/vpnhide_kmod/activator
su -c /data/adb/modules/vpnhide_kpm/activator
su -c /data/adb/modules/vpnhide_zygisk/activator
su -c /data/adb/modules/vpnhide_ports/activator

Run only activators for modules that are actually installed. LSPosed reads the JSON directly from system_server; it does not need an activator. Old /data/adb/vpnhide_* targets.txt files are no longer user config and are only used for migration from older releases.

Manual GKI lookup (if you want to pick the kmod file yourself)

1. On your phone, go to Settings → About phone and find the Kernel version line. It looks something like 6.1.75-android14-11-g...
2. You need two parts from this string: the kernel version (6.1) and the android generation (android14). Together they form your GKI generation: android14-6.1
3. Download the matching file from the release: vpnhide-kmod-android14-6.1.zip

Alternatively, run adb shell uname -r to see the kernel version string.

Important: android14 in the kernel string is NOT your Android version — it's the kernel generation. For example, Pixels from 6 to 9a all use the android14-6.1 kernel regardless of whether they run Android 14 or 15.

Screenshots

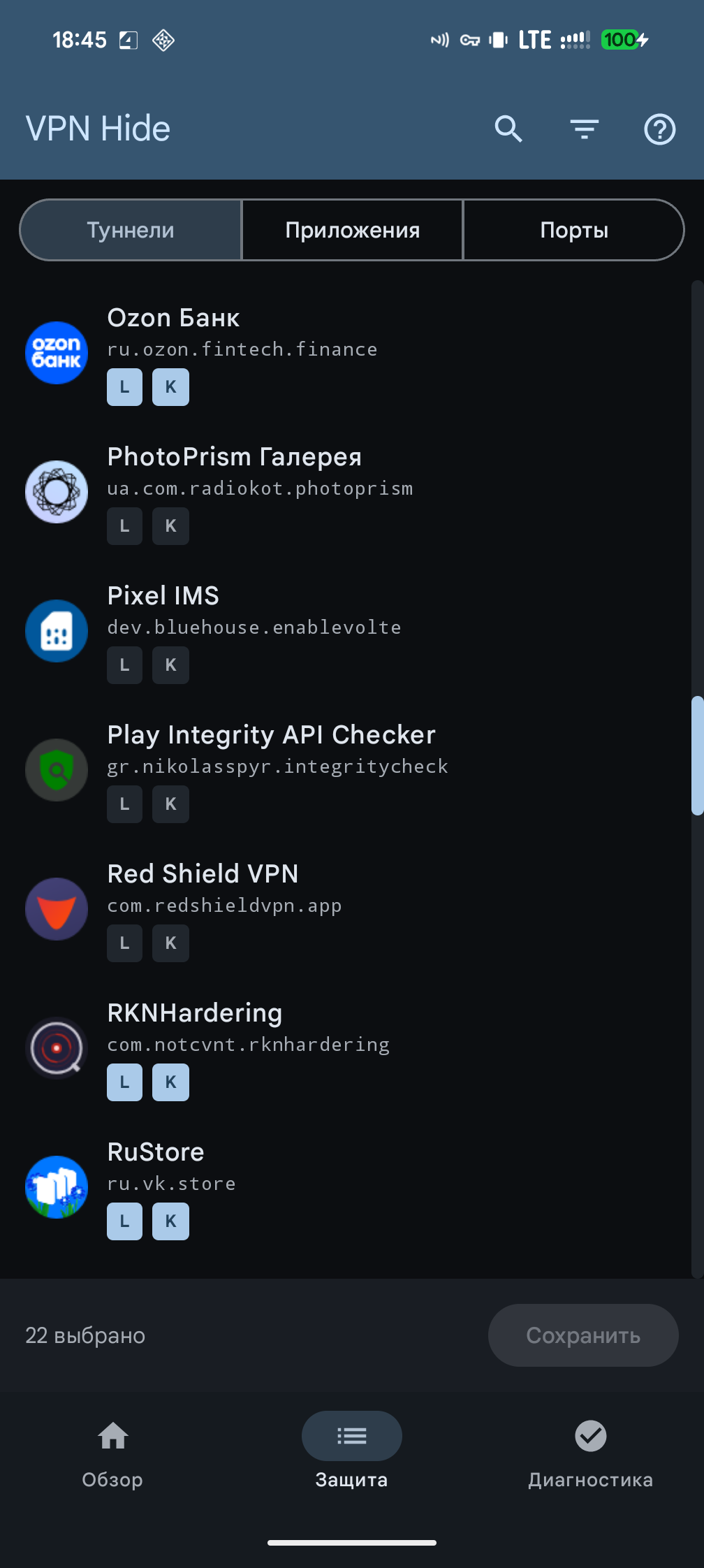

Dashboard — VPN hidden	Hiding — one app list	How it works

Statistics	Per-hook breakdown	Per-app hook selection

Diagnostics	Settings	Community

Verify

The app has a built-in diagnostics system that catches most setup problems automatically.

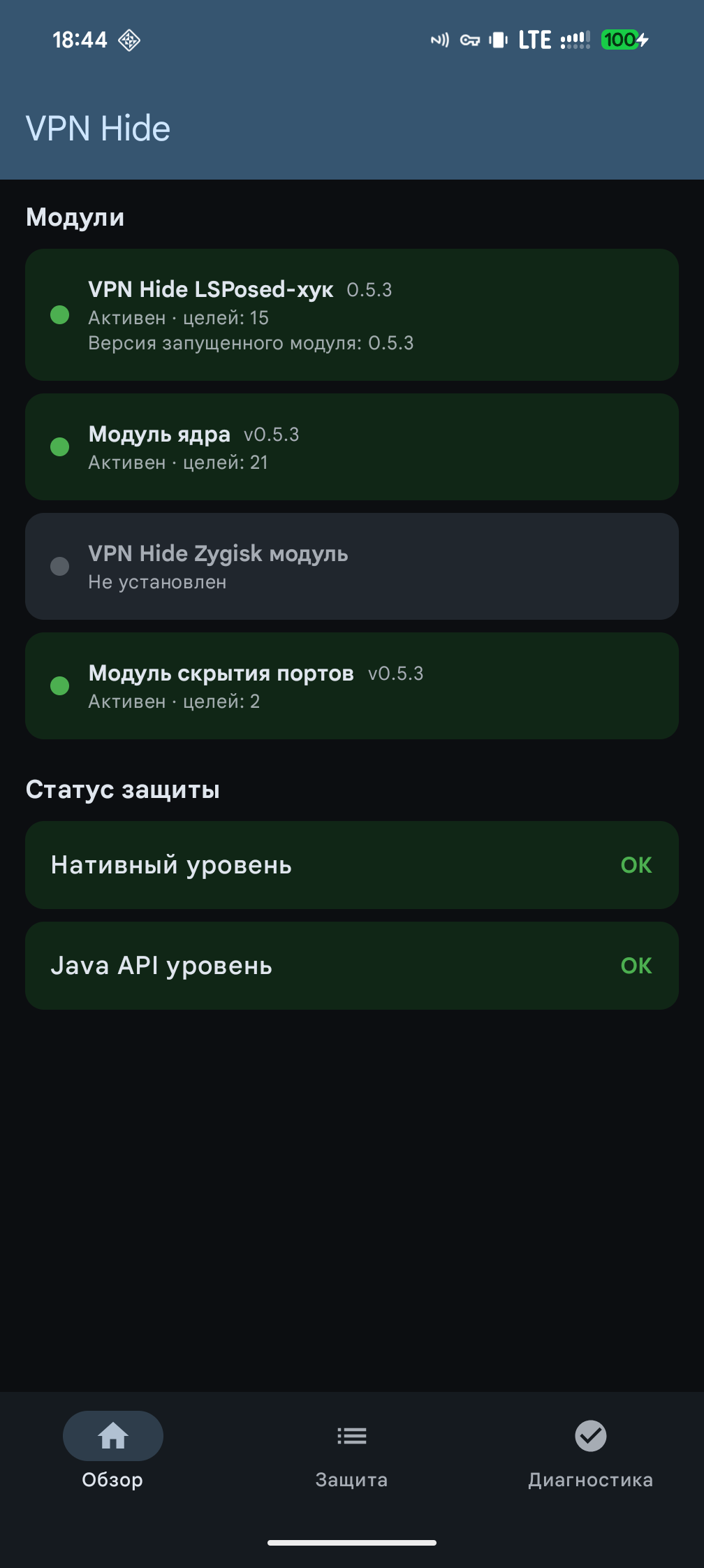

Dashboard (runs on every app launch):

• Module and backend status (installed, active, version, target count)
• LSPosed configuration validation — reads the LSPosed database to verify that VPN Hide is enabled, System Framework is in scope, and no extra apps are scoped (a common misconfiguration)
• Version mismatch detection — compares installed module versions with the running app version and tells you exactly what to update
• Native backend recommendation — detects your kernel and maps it to the right kmod, KPM, or Zygisk artifact
• Live hiding check (when VPN is active) — runs 13 native checks and 12 Java API checks to verify that VPN is actually hidden

Any issues found are shown as actionable cards with specific instructions.

Statistics tab — per-app breakdown of which apps probe for the VPN and how, showing which checks each app runs (counters reported by the active backends).

Settings → Diagnostics (Detailed diagnostics) — detailed per-check breakdown with individual PASS/FAIL results for all 25 checks. Useful for troubleshooting when the Dashboard shows incomplete hiding.

Components

Directory	What	How
kmod/	.ko kernel module + KPM backend (C)	Two kernel-level Native backends: the stable GKI .ko using kretprobe, and the KPM beta using KernelPatch inline hooks. Both have zero footprint in the target app's process; only one should be active. (details, KPM)
lsposed/	LSPosed module + app (Kotlin + Rust)	Hooks writeToParcel in system_server for per-UID Binder filtering. The APK provides a dashboard (module status, version checks, LSPosed config validation, install recommendations), the Hiding tab for Java / Native / Apps / Ports roles, and diagnostics. (details)
portshide/	Ports module (Shell + iptables)	Blocks selected apps from reaching 127.0.0.1 / ::1, hiding locally bound VPN / proxy daemons from localhost port probes. (details)
zygisk/	Zygisk module (Rust)	Inline-hooks libc.so in the target app's process. Fallback when a kernel-level backend is unavailable. (details)

Detection coverage

#	Detection vector	SELinux	kmod	KPM	Zygisk	LSPosed
1	ioctl(SIOCGIFFLAGS) on tun0		x	x	x
2	ioctl(SIOCGIFNAME) resolve index to name		x	x	x
3	ioctl(SIOCGIFMTU) MTU fingerprinting		x	x	x
4	ioctl(SIOCGIFCONF) interface enumeration		x	x	x
5	All other SIOCGIF* (INDEX, HWADDR, ADDR, etc.)		x	x	x
6	getifaddrs() (uses netlink internally)		x	x	x
7	netlink RTM_GETLINK dump		x	x	x
8	netlink RTM_GETADDR dump (IPv4 + IPv6)		x	x	x
9	netlink RTM_GETROUTE dump		x	x	x
10	/proc/net/route	blocked	x	x	x
11	/proc/net/ipv6_route	blocked	x	x	x
12	/proc/net/if_inet6	blocked			x
13	/proc/net/tcp, tcp6	blocked			x
14	/proc/net/udp, udp6	blocked
15	/proc/net/dev	blocked
16	/proc/net/fib_trie	blocked
17	/sys/class/net/tun0/	blocked
18	NetworkCapabilities (hasTransport, NOT_VPN, transportInfo)					x
19	NetworkInfo (getType, getTypeName)					x
20	ConnectivityManager.getActiveNetwork()					x
21	ConnectivityManager.getAllNetworks() + VPN scan					x
22	LinkProperties (interfaceName)					x
23	LinkProperties (routes via VPN interfaces)					x
24	NetworkInterface.getNetworkInterfaces()		x	x	x
25	System.getProperty (proxy settings)				x
26	/proc/net/route via Java FileInputStream	blocked	x	x	x

blocked = on stock-enforcing builds (Android 10+) SELinux usually denies untrusted apps access to that /proc/net/* / /sys file. But SELinux policy is configured differently across devices and ROMs (OEM and custom ROMs, permissive builds), so the vpnhide layers filter these paths anyway and never rely on SELinux.

Important: netlink dumps (rows 7-9) are not restricted by SELinux — a regular app reads interfaces, addresses, and routes directly over NETLINK_ROUTE. This is exactly how detectors like RKNHardering bypass the /proc/net/route denial (see issue #86). So the vectors actually reachable by a regular app are rows 1-9 and 24; the active Native backend handles them. Kernel-level backends (kmod/KPM) do this with no target-process footprint; Zygisk covers libc-routed paths but remains detectable and raw-syscall-bypassable. Everything else is either often SELinux-blocked on stock (device-dependent) or goes through Java APIs and is covered by LSPosed.

KPM is beta: its coverage mirrors the .ko columns above, but there are minor hook-parity gaps versus the stable .ko.

The full vector map — per-layer breakdown, SELinux caveats, and known gaps — lives in docs/detection-vectors.md.

Building from source

• kmod: ./kmod/build.py --kmi android14-6.1 (or --all) — auto-spawns the DDK container via podman/docker. Full guide: kmod/BUILDING.md.
• KPM: python3 kmod/kpm/build.py — builds the universal vpnhide-kpm.zip through the KernelPatch submodule. Details: kmod/kpm/README.md.
• zygisk: cd zygisk && ./build.py (Rust + NDK + cargo-ndk)
• lsposed: cd lsposed && ./gradlew assembleDebug (JDK 17 + Rust + NDK + cargo-ndk)

Notes for contributors stuck on Windows

If you're on Windows, there are some inconveniences with building some subprojects.

lsposed: builds fine in Android Studio.

portshide: cd .\portshide\; python .\build-zip.py runs fine.

For kmod and zygisk, you'll (unfortunately) need to install Docker for Windows.

kmod: python .\kmod\build.py --kmi android14-6.1 — the script picks up Docker and pulls the same ddk-min image that CI uses.

KPM: build from Linux or WSL. The script expects POSIX tools, make/clang, the KernelPatch submodule, and the Android NDK; a native Windows build path is not documented.

zygisk:

docker run --rm -it -v "${PWD}:/workspace" -v "vpnhide_cargo_cache:/usr/local/cargo/registry" -w /workspace ghcr.io/okhsunrog/vpnhide/ci:latest bash -c 'cd zygisk && python3 ./build.py'

The reason zygisk can't be built directly on Windows is that the zygisk-api dependency contains a file named aux.rs. Cargo uses libgit2 for git operations, and libgit2 refuses to create files whose names contain reserved Windows device names (AUX, CON, NUL, …). You'll get: cannot checkout to invalid path 'src/aux.rs'; class=Checkout (20). Someone reports that some Windows update made it possible to create files containing reserved words with an extension, but libgit2 hasn't been updated to relax the guard.

Verified against

• RKNHardering — all detection vectors clean
• YourVPNDead — all detection vectors clean

Both implement the official Russian Ministry of Digital Development VPN/proxy detection methodology (source).

Split tunneling

Works correctly with split-tunnel VPN configurations. Only the apps in the target list are affected.

Using split tunneling together with VPN Hide is strongly recommended.

Detection apps that compare the device-reported public IP against external checkers should stay outside the tunnel — their traffic should go through the carrier, not the VPN.

Threat model

vpnhide hides an active VPN from specific apps. It is NOT designed for:

• Hiding root or custom ROM presence
• Bypassing Play Integrity
• Fooling server-side detection (DNS leakage, IP blocklists, latency/TLS fingerprinting)

Known limitations

• kmod requires a supported GKI kernel with CONFIG_KPROBES=y (standard on Android 12+ devices)
• KPM is beta and requires a KernelPatch runtime (APatch or KPatch-Next-Module); do not install KPM together with the .ko
• lsposed requires LSPosed, LSPosed-Next, or Vector
• zygisk is arm64 only
• Direct svc #0 syscalls bypass Zygisk's libc hooks — use a kernel-level backend (kmod or KPM) for that
• Server-side detection is unfixable client-side — use split tunneling

License

MIT. See LICENSE.

The kernel module declares MODULE_LICENSE("GPL") as required by the Linux kernel to resolve EXPORT_SYMBOL_GPL symbols at runtime.
