🚀 WFGY 3.0 · RAG 16 Problem Map · Global Debug Card

Image as a Structured Debug Prompt for RAG / Agent Pipelines

🌐 Recognition & ecosystem integration

As of 2026-03, the WFGY RAG 16 Problem Map line has been adopted or referenced by
20+ frameworks, academic labs, and curated lists in the RAG and agent ecosystem.
Most external references use the WFGY ProblemMap as a diagnostic layer for RAG / agent pipelines,
not the full WFGY product stack.
A smaller but growing set also uses WFGY 3.0 · Singularity Demo as a long-horizon TXT stress test.

Some representative integrations:

Project	Stars	Segment	How it uses WFGY ProblemMap	Proof (PR / doc)
RAGFlow		Mainstream RAG engine	Adds a RAG failure modes checklist guide in its official docs, adapted from the WFGY 16-problem failure map for step-by-step RAG pipeline diagnostics.	PR #13204
LlamaIndex		Mainstream RAG infra	Integrates the WFGY 16-problem RAG failure checklist into its official RAG troubleshooting docs as a structured failure-mode reference.	PR #20760
ToolUniverse (Harvard MIMS Lab)		Academic lab / tools	Provides a WFGY_triage_llm_rag_failure tool that wraps the 16-mode map for incident triage.	PR #75
Rankify (Univ. of Innsbruck)		Academic lab / system	Uses the 16 failure patterns in RAG and re-ranking troubleshooting docs.	PR #76
Multimodal RAG Survey (QCRI LLM Lab)		Academic lab / survey	Cites WFGY as a practical diagnostic resource for multimodal RAG.	PR #4

For the complete 20+ project list (frameworks, benchmarks, curated lists), see the 👉 WFGY Recognition Map

If your project uses the WFGY ProblemMap and you would like to be listed,
feel free to open an issue or pull request in this repository.

---

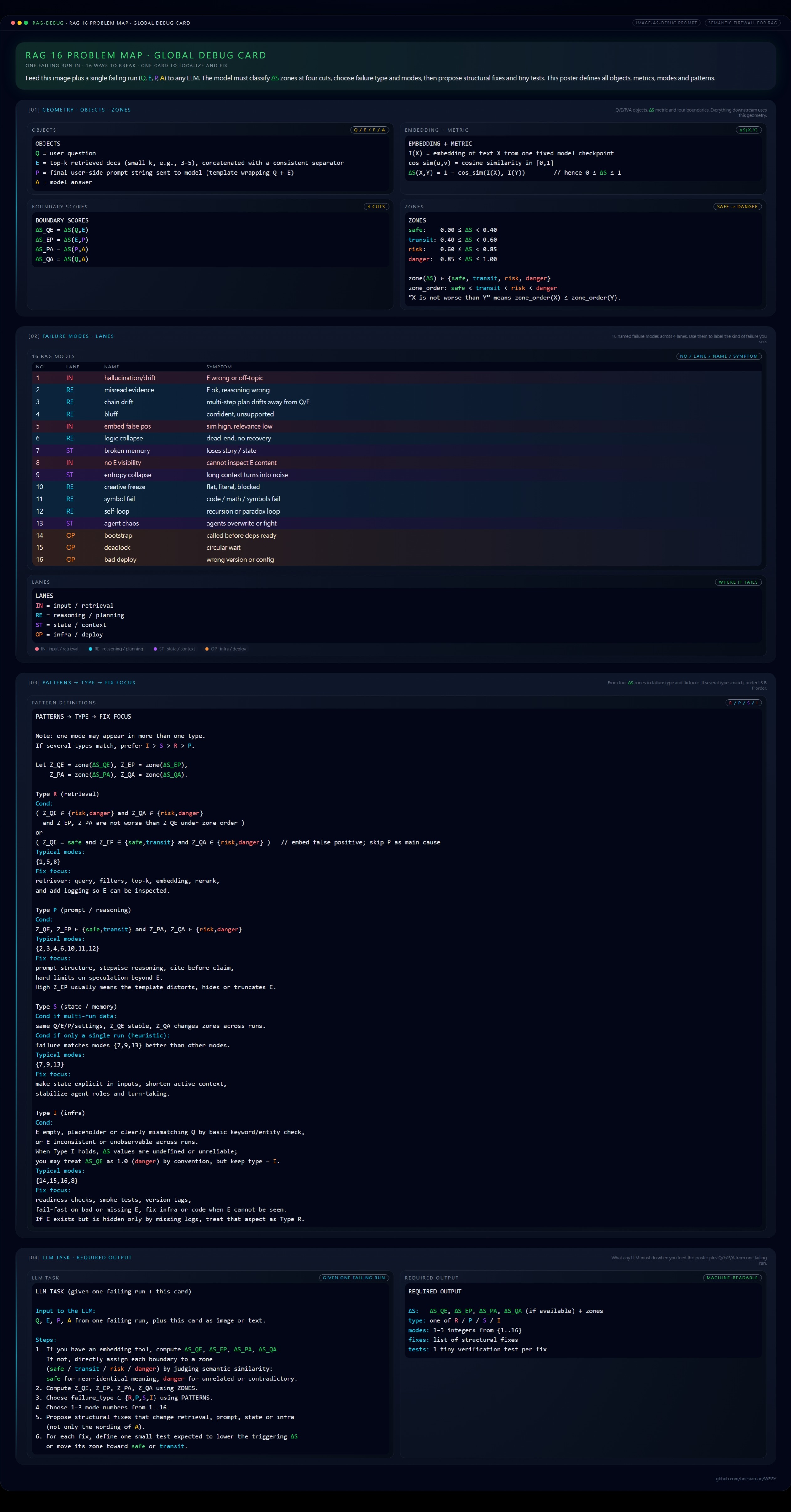

A production-first failure map for RAG / agent pipelines, compressed into one portable image.
The poster defines objects, metrics, ΔS zones, failure types, and mode patterns in a single unified view.

Feed a failing run (Q, E, P, A) plus this card to any LLM.
It returns type → mode(s) → fixes → verification tests.

No external framework required.

---

How to use (60 seconds)

1. Download the full-resolution Debug Card from this repository.
2. Upload the image to any strong LLM.
3. Paste your failing run context:
   • Q = user question
   • E = top-k retrieved evidence
   • P = final prompt sent to the model
   • A = model output
   • plus logs/metrics if available
4. Ask the model to diagnose using the 16-Problem Map and propose fixes with one test per fix.

Expected output:

• ΔS zones (or best-effort estimate)
• failure type: R / P / S / I
• 1–3 matching modes (1–16)
• structural fixes + verification tests

---

---

📥 Download the original full-resolution image directly from this repository.
If this helps you, feel free to leave a ⭐ on GitHub.

---

Colab MVP (Work in Progress)

This section is a placeholder for the first runnable notebook release.

Planned direction:

• run one failing case from (Q, E, P, A)
• emit a structured debug packet
• apply one constrained patch
• re-check verification signals

Expected first-wave scope:

• No.1 retrieval wrong or off-topic
• No.5 semantic vs embedding mismatch
• No.8 missing evidence visibility
• No.2 interpretation collapse

Status:

• placeholder only
• notebook structure and examples coming soon

---

Machine-Readable JSON MVP (Work in Progress)

This section is a placeholder for the machine-readable protocol layer.

Planned spec set:

• wfgy_problem_catalog_v1.json
• wfgy_debug_packet_v1.json

Intended use:

• make the 16-mode map consumable by tools
• let agent runners ingest one debug result as a stable packet
• support reproducible before/after repair loops

Status:

• placeholder only
• schema, examples, and integration notes coming soon

---

Environment Coverage

• MLflow · Experiment tracking & RAG debugging · Medium Article
• Dask · Distributed execution & task orchestration · Medium Article
• Kedro · Pipeline structuring & ML workflow management · Medium Article

---

FAQ

Do I need all four objects `(Q, E, P, A)` to use the Global Debug Card?

The best results come from having all four objects:

• Q = user question
• E = retrieved evidence
• P = final prompt sent to the model
• A = model output

This gives the card the full diagnostic chain from intent to evidence to prompt to answer.

If one object is missing, the card can still be used for partial triage:

• missing P usually means rough classification is still possible
• missing E often points to observability or infra-side issues
• missing both E and P reduces accuracy, but the card can still help identify likely failure families

In short: all four objects are ideal, but partial inputs can still be useful for first-pass diagnosis.

---

Can the Global Debug Card partially automate RAG debugging?

Yes, partially.

The card is well suited for:

• structured triage
• first-pass failure classification
• matching likely problem modes
• proposing repair directions
• defining one verification test per fix

This means it can help automate the early part of debugging very well.

What it does not guarantee is a one-click, fully automatic repair for every RAG failure.
Some cases still require human review, domain context, or deeper system changes.

The current design goal is not "magic auto-fix."
The goal is to turn messy debugging into a repeatable protocol.

---

Can tools like OpenClaw use this card to automatically resolve RAG issues?

Yes, for some classes of issues.

A tool like OpenClaw can use the Global Debug Card as a diagnostic layer:

1. collect (Q, E, P, A)
2. run classification
3. emit a structured debug packet
4. apply one constrained repair action
5. re-run a verification check

This is most realistic for problems where the repair loop is narrow and testable.

Best early targets include:

• No.1 retrieval wrong or off-topic
• No.5 semantic vs embedding mismatch
• No.8 missing evidence visibility
• parts of No.2 interpretation collapse

These are good candidates because they often respond to:

• retrieval parameter changes
• query rewrite
• re-ranking
• logging and observability upgrades
• constrained prompt repair

Harder cases, such as long-horizon reasoning errors or deep architectural flaws, usually should not be treated as fully automatic fixes in the first wave.

---

What can the first Colab MVP actually automate?

The first Colab MVP is designed as a first-pass repair loop, not a full autonomous debugger.

Its planned job is:

1. accept one failing case from (Q, E, P, A)
2. compute or estimate the diagnostic structure
3. emit a machine-readable debug packet
4. apply one constrained patch
5. re-check one or more verification signals

This makes the first public notebook useful for:

• reproducible triage
• small repair experiments
• before/after comparisons
• documenting how one failure was improved

The first Colab MVP is intended to prove the protocol works in practice.
It is not meant to solve every failure mode automatically on day one.

---

Which problem modes are best suited for automated debugging first?

The best first-wave targets are the modes that are both:

• easy to observe
• narrow enough to repair with a constrained loop

The strongest early candidates are:

• No.1 retrieval wrong or off-topic
  Good for top-k sweeps, query rewrite, filter tightening, and re-ranking.

• No.5 semantic vs embedding mismatch
  Good for embedding checks, chunking review, normalization review, and retrieval alignment tests.

• No.8 missing evidence visibility
  Good for observability upgrades, evidence logging, and packet completeness checks.

• No.2 interpretation collapse
  Good for constrained prompt repair, evidence-first answer patterns, and citation-before-claim checks.

These modes are ideal for Wave 0 because they can often be improved without rebuilding the entire stack.

---

What will the machine-readable JSON MVP be used for?

The JSON MVP is the protocol layer for tools.

It is meant to make the card usable by:

• agent runners
• CI workflows
• internal debugging tools
• replay and comparison pipelines

The planned JSON layer has two main roles:

1. Problem catalog JSON
   A machine-readable version of the 16-mode map, including mode IDs, signals, and default repair directions.

2. Debug packet JSON
   A stable result format for one diagnosis run, including the detected type, likely modes, fixes, and verification steps.

The JSON layer does not replace the image workflow.
It makes the same logic consumable by software.

---

Can I plug this into my own agent runner, CI, or internal tooling?

Yes, that is one of the intended directions.

If your system can provide a minimal case record such as:

• Q
• E
• P
• A

then it can likely be adapted to this protocol.

Additional metadata can improve results, for example:

• retrieval scores
• model name
• chunk IDs
• timing logs
• prompt template version
• index configuration

The final goal is simple:

your system emits one case, the protocol emits one debug packet.

That makes the card easier to integrate into real workflows than a free-form debugging conversation.

---

Is this meant to replace human debugging?

No.

The purpose of the Global Debug Card is to improve the first stage of debugging:

• shared vocabulary
• structured triage
• clearer diagnosis
• repeatable verification steps

It is not meant to remove human judgment.

Human review is still important for:

• high-risk changes
• domain-specific correctness
• architecture-level redesign
• policy or safety decisions
• ambiguous multi-cause failures

A good way to think about it is:

this card reduces debugging chaos, but humans still decide the final repair strategy.

---

Do I need embeddings to use this page?

No, but embeddings make the protocol stronger.

The full diagnostic model uses structured similarity and boundary reasoning.
That works best when a fixed embedding model is available.

However, the card is still useful without embeddings:

• a strong LLM can estimate likely drift patterns from the visible objects
• the image workflow can still guide manual or semi-structured triage
• rough type and mode guesses can still be generated from the failure pattern

So there are two valid usage modes:

• image + reasoning workflow for fast manual triage
• embedding + packet workflow for stronger, machine-runnable diagnosis

---

What is the difference between the image workflow and the JSON workflow?

They use the same logic, but they serve different users.

Image workflow

• optimized for humans
• easy to use immediately
• works by uploading the card and pasting (Q, E, P, A)
• good for fast triage with any strong LLM

JSON workflow

• optimized for tools
• intended for automation and integration
• produces stable, machine-readable outputs
• good for replay, comparison, and agent orchestration

In short:

• the image workflow is the human entry point
• the JSON workflow is the machine entry point

Both are two views of the same protocol.

---

Why not just paste logs into any strong LLM and ask it to debug?

You can do that, and sometimes it helps.
But without a shared protocol, the output is often inconsistent.

Raw free-form debugging usually has these problems:

• no shared object model
• no fixed failure vocabulary
• no stable mapping from symptoms to modes
• no required verification step
• hard to compare two runs consistently

The Global Debug Card adds structure:

• the same four objects
• the same failure families
• the same mode vocabulary
• the same output expectation
• the same repair-and-test pattern

That makes debugging more reproducible and much easier to turn into automation.

---

How far can the Global Debug Card be pushed?

The short answer is: much further than a static poster.

At minimum, it is already useful as:

• an image-based triage layer
• a shared RAG debugging vocabulary
• a structured prompt for diagnosis

With the next layers added, it can grow into:

• a Colab-based repair loop
• a machine-readable incident format
• a replayable before/after comparison tool
• an agent-facing debug protocol
• a lightweight regression-check layer for RAG systems

So the long-term direction is not "just a card."

The long-term direction is:

• from image prompt
• to structured diagnosis
• to partial automation
• to reproducible repair loops
• to a reusable protocol for RAG debugging

---

Can this help reduce hallucinations without changing the whole stack?

Often, yes.

One of the main strengths of the card is that it works as a diagnostic layer, not a full replacement stack.

That means teams can often improve reliability by first identifying:

• whether the problem is retrieval
• whether the prompt is the main source of drift
• whether evidence visibility is missing
• whether the issue is state or infra-related

This allows smaller, more targeted fixes:

• retrieval tuning
• prompt repair
• re-ranking
• observability upgrades
• packet completeness checks

In many real cases, that is much cheaper than rebuilding the whole system.

---

Can this support replay, A/B comparison, and before/after repair loops?

Yes, and that is one of the strongest next-step directions.

Once a failure case is captured in a structured form, the same case can be replayed under different settings:

• different top-k values
• different retrievers
• different chunking strategies
• different prompt templates
• different repair actions

This makes it possible to compare:

• before vs after
• setup A vs setup B
• manual fix vs automated fix

That is one reason the Colab MVP and JSON MVP matter.
They move the card from "diagnostic poster" toward "replayable debugging protocol."

---

What should I submit if I want my failing case to become a reproducible example?

The best submission is a minimal but complete failure packet.

Recommended input:

• Q = the original user question
• E = retrieved evidence or top-k chunks
• P = the final prompt sent to the model
• A = the model output
• any relevant logs or metrics
• optional notes about the expected correct behavior

You should remove private or sensitive data before sharing.

A good reproducible example does not need to be large.
It just needs to preserve the failure pattern clearly enough for the protocol to analyze.

That kind of example is ideal for future Colab demos, test cases, and repair-loop comparisons.
