🚀 WFGY 3.0 · RAG 16 Problem Map — Global Debug Card
Image as a Structured Debug Prompt for RAG / Agent Pipelines
🌐 Recognition & ecosystem integration
As of 2026-03, the WFGY RAG 16 Problem Map line has been adopted or referenced by
20+ frameworks, academic labs, and curated lists in the RAG and agent ecosystem.
Most external references use the WFGY ProblemMap as a diagnostic layer for RAG / agent pipelines,
not the full WFGY product stack.
A smaller but growing set also uses WFGY 3.0 · Singularity Demo as a long-horizon TXT stress test.
Some representative integrations:
| Project | Stars | Segment | How it uses WFGY ProblemMap | Proof (PR / doc) |
|---|---|---|---|---|
| RAGFlow |  |
Mainstream RAG engine | Adds a RAG failure modes checklist guide in its official docs, adapted from the WFGY 16-problem failure map for step-by-step RAG pipeline diagnostics. | PR #13204 |
| LlamaIndex |  |
Mainstream RAG infra | Integrates the WFGY 16-problem RAG failure checklist into its official RAG troubleshooting docs as a structured failure-mode reference. | PR #20760 |
| ToolUniverse (Harvard MIMS Lab) |  |
Academic lab / tools | Provides a WFGY_triage_llm_rag_failure tool that wraps the 16-mode map for incident triage. |
PR #75 |
| Rankify (Univ. of Innsbruck) |  |
Academic lab / system | Uses the 16 failure patterns in RAG and re-ranking troubleshooting docs. | PR #76 |
| Multimodal RAG Survey (QCRI LLM Lab) |  |
Academic lab / survey | Cites WFGY as a practical diagnostic resource for multimodal RAG. | PR #4 |
For the complete 20+ project list (frameworks, benchmarks, curated lists), see the 👉 WFGY Recognition Map
If your project uses the WFGY ProblemMap and you would like to be listed,
feel free to open an issue or pull request in this repository.

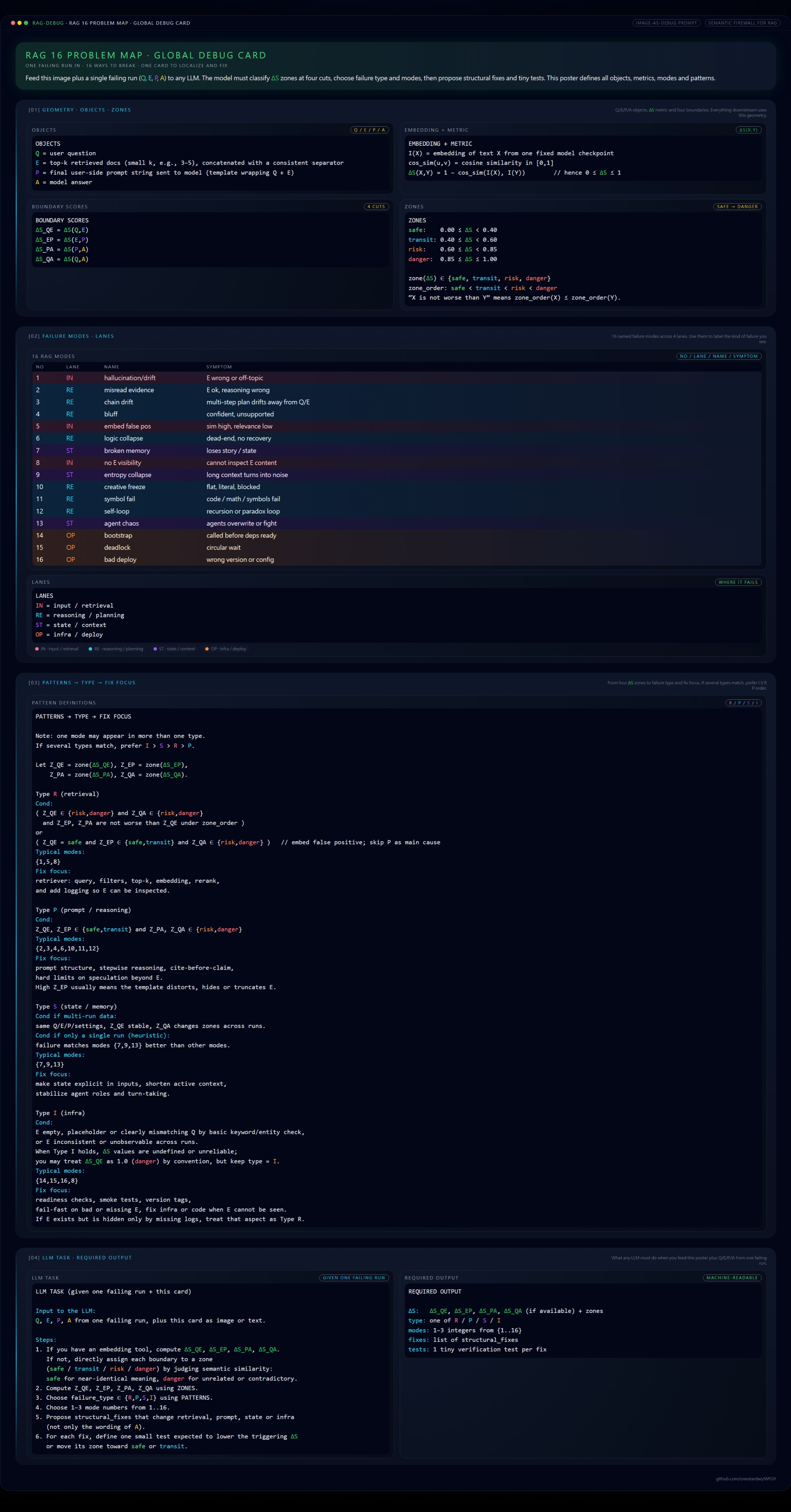

A production-first failure map for RAG / agent pipelines, compressed into one portable image.
The poster defines objects, metrics, ΔS zones, failure types, and mode patterns in a single unified view.
Feed a failing run (Q, E, P, A) plus this card to any LLM.
It returns type → mode(s) → fixes → verification tests.
No external framework required.
How to use (60 seconds)
- Download the full-resolution Debug Card from this repository.
- Upload the image to any strong LLM.
- Paste your failing run context:
Q= user questionE= top-k retrieved evidenceP= final prompt sent to the modelA= model output- plus logs/metrics if available
- Ask the model to diagnose using the 16-Problem Map and propose fixes with one test per fix.
Expected output:
- ΔS zones (or best-effort estimate)
- failure type:
R / P / S / I - 1–3 matching modes (1–16)
- structural fixes + verification tests
Environment Coverage
- MLflow · Experiment tracking & RAG debugging · Medium Article
- Dask · Distributed execution & task orchestration · Medium Article
- Kedro · Pipeline structuring & ML workflow management · Medium Article (coming soon)
📥 Download the original full-resolution image directly from this repository. If this helps you, feel free to leave a ⭐ on GitHub.
